STM32 CTEC ARM Based 32 Bit MCU CKS32F030 Integrated Circuit

Dongguan Uchi Electronics Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

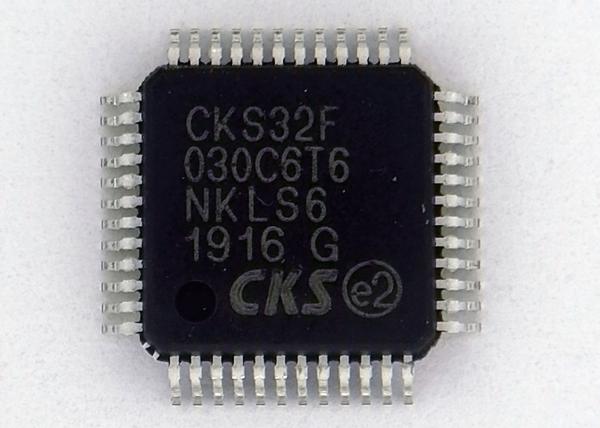

STM32 CTEC ARM Based 32 Bit MCU CKS32F030 Integrated Circuit

Brand Name : CTEC

Model Number : CKS32F030C8

Certification : Full

Place of Origin : china

MOQ : 1 piece

Price : 1~2 USD/PC

Payment Terms : T/T, Western Union

Supply Ability : 100,000 pieces per month

Delivery Time : 5-7 days

Packaging Details : bulk or reel

Name : MCU

frequency : 48MHZ

Flash memory : 14-64kb

SRAM : 4kb

Voltage : 2.4 V to 3.6 V

Low power mode : Sleep, Stop, Standby

crystal oscillator : 4 to 32 MHz

DMA controller : 5-channel

Separate analog supply : from 2.4 up to 3.6 V

Conversion range : 0 to 3.6 V

Contact Now


STM32 CTEC ARM-based 32-bit MCU CKS32F030 integrated circuit Microcon with Flash, timers, ADC, communication interfaces


Features


 Core: ARM® 32-bit Cortex™-M0 CPU, frequency up to 48 MHz
 Memories
– 16 to 64 Kbytes of Flash memory
– 4 Kbytes of SRAM with HW parity checking
 CRC calculation unit
 Reset and power management
– Voltage range: 2.4 V to 3.6 V
– Power-on/Power down reset (POR/PDR)
– Low power modes: Sleep, Stop, Standby

 Clock management
– 4 to 32 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– Internal 8 MHz RC with x6 PLL option
– Internal 40 kHz RC oscillator
 Up to 39 fast I/Os
– All mappable on external interrupt vectors
– Up to 26 I/Os with 5 V tolerant capability
 5-channel DMA controller
 1 x 12-bit, 1.0 μs ADC (up to 16 channels)
– Conversion range: 0 to 3.6 V
– Separate analog supply from 2.4 up to 3.6 V
 Up to 9 timers

– One 16-bit 7-channel advanced-control timer for 6 channels PWM output, with deadtime generation and emergency stop
– One 32-bit timer One 16-bit timer, with up to 4 IC/OC, usable for IR control decoding
– Two 16-bit timers, each with IC/OC and OCN, deadtime generation, emergency stop and modulator gate for IR control
– One 16-bit timer with 1 IC/OC

– Independent and system watchdog timers
– SysTick timer: 24-bit downcounter
 Calendar RTC with alarm and periodic wakeup from Stop/Standby
 Communication interfaces
– One I2C interfaces: one supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink
– One USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection
– One SPIs (18 Mbit/s) with 4 to 16 programmable bit frame
 Serial wire debug (SWD)


Manufacturer


Founded in September 2008, Zhongkexin Integrated Circuit Co., Ltd. is an integrated circuit innovation industry group established by China Electronics Technology to focus on building the IC design industry and enhancing core competitiveness. It is a second-level member unit of China Electronics Technology and also a national An important integrated service platform for integrated circuits. China Electronics Technology Group (CETC) is one of China's eleven largest military industry groups, an enterprise directly under the central government, and has strong strength in military chip products. Zhongkexin established an SoC R&D center in 2015 to focus on building its own national brand MCU industry for consumer electronics, industrial control, Internet of Things and automotive electronics, and enhance the core competitiveness of the national integrated circuit industry. Since the establishment of the R&D center, Zhongkexin has made gradual progress and key breakthroughs. As of August 2020, it can provide 4 series of 32-bit ARM processors for mass supply products, which can perfectly replace ST's corresponding models, software and hardware. Good compatibility.


In software: Zhongkexin adopts a register-level compatible design. For programs that have been developed using ST series MCUs, HEX files can be directly burned into the corresponding MCU of Zhongkexin without any changes; for the programs under development , Engineers can still choose to continue to use ST series MCU development. After the development is completed, switch to the MCU corresponding to Zhongkexin, or switch to Zhongkexin’s library functions. Zhongkexin provides a large number of easy-to-use APIs and rich The reference materials and sample codes help engineers to conveniently and efficiently use the MCU of Kexin. For the development environment, the full range of STC MCUs support Keil and IAR online debugging and programming. For debuggers and offline downloaders, most of the debuggers on the market that support ST series MCUs support STC MCUs, including STlink and Jlink.


In terms of hardware: All MCUs of Zhongkexin are pin to pin compatible with the corresponding models of ST series MCUs, including pin multiplexing functions and various peripheral interfaces, which greatly reduces the workload of engineers when switching products. Products can be put into testing and production faster.


development tools:

You can click on the corresponding model in the link on the right to obtain development materials and submit a free development board application: Zhongkexin CKS32 Universal 32-bit MCU Development Board List. The figure below shows the specific model.


32-bit MCU (CKS32F series)


● Based on ARM Cortex-M0 and M3 cores, 4 series of 39 products

● Provide stop, sleep, idle and other working modes, the power consumption is 20% lower than that of foreign partners

● Custom hierarchical read-write protection, multiple and diversified protection mechanisms

● Support customized chip development, SiP technical service

● Full-process cost control and supply guarantee


Brand : CETC

Part number : CKS32,CKS32F0x0,CKS32F031,CKS32F051,CKS32F103,CKS32F030F4P6,CKS32F030F6P6,CKS32F030K6T6,CKS32F030K6U6,CKS32F030C6T6,CKS32F030C8T6,CKS32F030R8T6,CKS32F031F4P6,CKS32F031F6P6,CKS32F031K6T6,CKS32F031K6U6,CKS32F031C6T6,CKS32F051K6T6,CKS32F051K6U6,CKS32F051K8T6,CKS32F051K8U6,CKS32F051C8T6,CKS32F051R8T6,CKS32F103T8T6,CKS32F103TBT6,CKS32F103C8T6,CKS32F103CBT6,CKS32F103R8T6,CKS32F103VBT6,CKS32F103RBT6

Category:General-purpose 32-bit MCU, 32-bit MCU

Application:[Micro printer][Stage lighting][Balance car][Twist car][Electric car][New energy electric control][Inverter][Car equipment][BLDC drive][Servo stepping motor drive][Power tools] [Industrial Automation][Robots][Home Appliances][Internet of Things][Intelligent Manufacturing][Communications][PC and Gaming Peripherals][Smart Home][Toys][Handheld PTZ]

Package:LQFP100, LQFP64, LQFP48, QFN36, QFN32, LQFP32


8-Bit OTP MCU

8-Bit Flash MCU
8-Bit MTP MCU
16-Bit Flash MCU
32-Bit ARM MCU


Product Tags:

CTEC ARM Based 32 Bit MCU



CKS32F030 Integrated Circuit



STM32 MCU


China STM32 CTEC ARM Based 32 Bit MCU CKS32F030 Integrated Circuit wholesale
